Finish Line regulation and filtration systems

SKU: N/A

Finish Line regulation and filtration systems











Description

The compact and economical Finish Line air regulation and filtration systems are specially designed for using in preparation areas and can also be installed outside the spray booth.

Filter regulator

Code: 811.FLFR-1

Features:

Air filtration down to 20 microns.

High quality manufacture.

Air flow of 70 cfm (at 7 bar – 100 psi inlet pressure).

Lockable and removable (tamperproof) control.

https://www.sistar.it/wp-content/uploads/2024/04/flfr-1-320x320.jpg

Coalescing filter

Code: 811.FLCF-1

Features:

A 3/8″ (port size) coalescing (fine oil) filter.

Air filtration down to 0.01 microns.

Replaceable filter element.

Maximum working pressure 18 bar (260 psi).

https://www.sistar.it/wp-content/uploads/2024/04/flcf-1-320x320.jpg

Filter regulator coalescer

Code: 811.FLRC-1

Features:

Compact, low cost single operator Filter Regulator and Coalescer.

Filtration down to 0.01 microns suitable for air mask or visor.

https://www.sistar.it/wp-content/uploads/2024/04/flrc-1-320x320.jpg

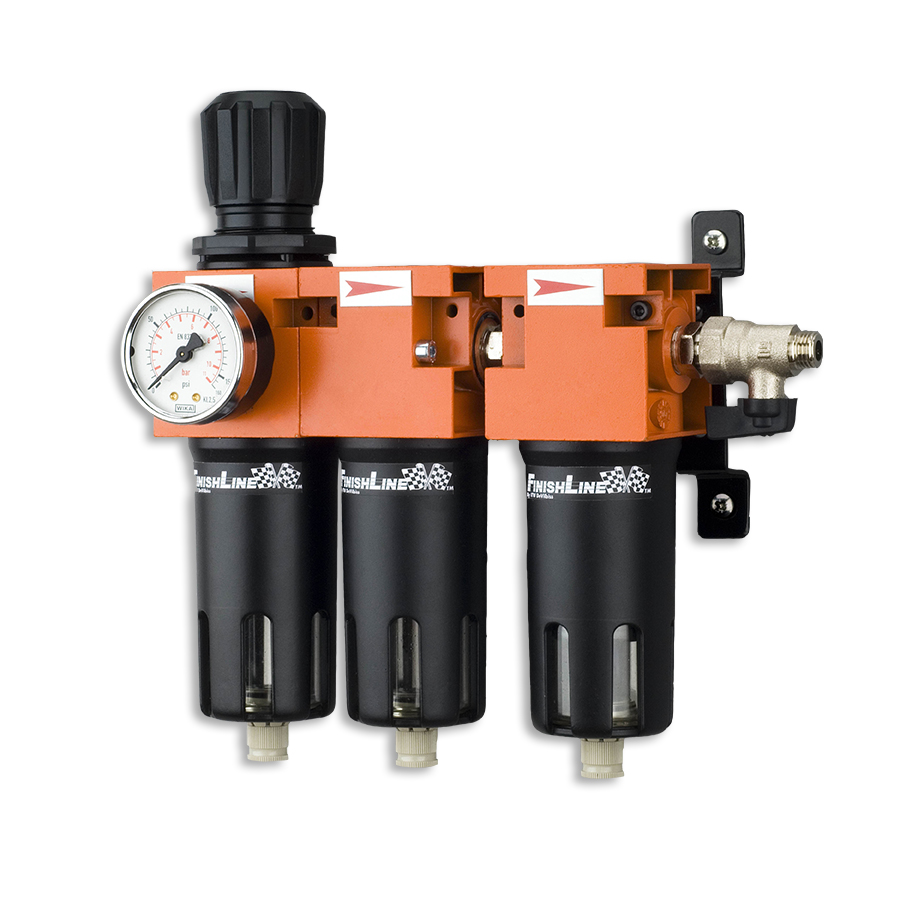

Filter regulator coalescer with activated carbon filter

Code: 811.FLRCAC-1

Features:

High efficiency filter designed to remove dirt, liquid oil and water from spraying and breathing air.

Filtration down to 0.01 microns plus activated carbon filter removing contaminants down to 0.003 microns.

https://www.sistar.it/wp-content/uploads/2024/04/flrcac-1-320x320.jpg
