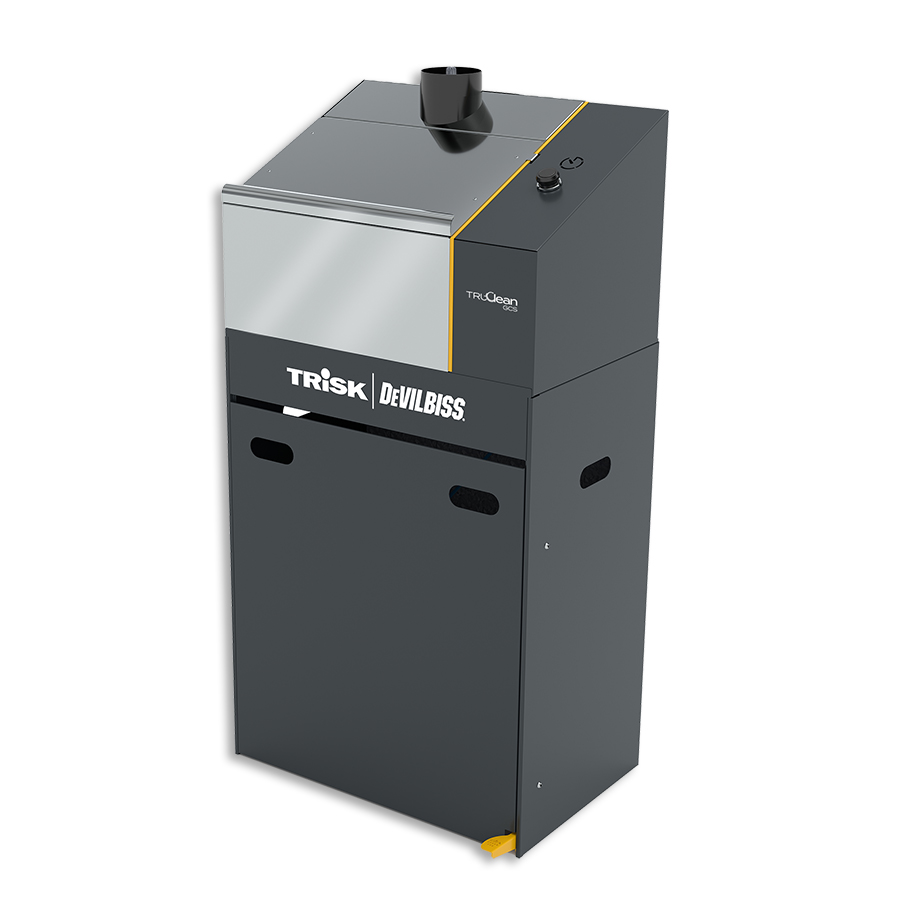

GCS - Gun cleaner unit
Description
Quickly, safely and efficiently cleans spray guns from water- or solvent-based paints
TheTru-Clean™ GCS Trisk|DeVilbiss gun cleaner enables superior cleaning, proper maintenance and longer spray gun life.
The compact design of this machine offers flexibility installation and requires minimal space in paint preparation rooms or dedicated cleaning areas.
The powerful 10 l/min pump at 5 bar (2.6 gpm at 87 psi) provides effective paint cleaning.
The convenient and intuitive user interface offers two activations: automatic wash button or foot control allowing the use of both hands during manual rinsing.
The Tru-Clean GCS offers the possibility of washing guns soiled with solvent-based or water-based paint.
This option is selected by the operator depending on the type of paint to be cleaned.
The unit is designed and adapted to handle both types of washing.
Technical specifications
- Weight: 30 kg (66 lbs)
- Air consumption – Auto cycle: < 100 l/min (<3.5 cfm)
- Air consumption – Manual Cleaning: 210 l/min (7.4 cfm)
- Avg. Ventilation Air Speed: 0.8 m/sec (160 ft/min)
- Extraction capacity: 10m (33 ft) extr. Duct 290m3/h (171 cfm)
- Air supply: 6 bar (87 psi)
- Drum size: Up to 25L (6.6 gal)
- Flushing media types: Solvent – based or Waterborne
SPRAY GUN WASHING MACHINE
